The Risks of Relying on Taped Sheathing WRB Systems as a “Rainscreen” During Framing

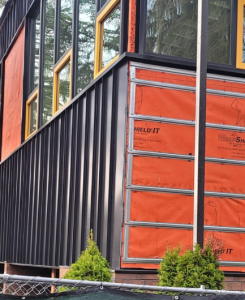

Alt Text (SEO + Accessibility Optimized)Weather-resistive barrier installed behind modern exterior cladding, showing moisture protection layers on a Seattle-area building. — Weather-resistive barrier (WRB) installed as part of a high-performance exterior wall assembly. In Seattle’s wet climate, WRB continuity and careful detailing at seams and transitions are essential for long-term moisture protection.

A Seattle Homeowner’s Guide to Seams, Fasteners, and Exterior Insulation Risk in Wet Coastal Climates

In Seattle and other wet coastal climates, exterior performance isn’t determined by siding alone—it depends on how well the entire wall system manages water and air over time. Many modern homes use taped structural sheathing with an integrated water-resistive barrier (WRB) as their primary weather layer, and when installed correctly, these systems can perform very well.

However, one common mistake is treating this sheathing-based WRB layer as if it functions as a complete “rainscreen” strategy during framing—especially when wall assemblies will later include continuous exterior insulation mounted over the sheathing.

This resource explains the risks that can occur when seam continuity, tape quality, fastener penetrations, and later-added insulation are not fully accounted for—and what a more durable approach looks like for Pacific Northwest conditions.

What These Systems Are Designed to Do (and What They Are Not)

Taped sheathing WRB systems combine:

Structural sheathing
An integrated WRB-facing surface
Taped seams that create continuity across panel joints

A common example of this type of system is ZIP System® sheathing, though similar “taped panel WRB” approaches exist across the industry.

When seams are taped properly and penetrations are detailed correctly, these systems can serve as a high-performing air and water management layer behind cladding.

But it’s important to understand this clearly:

✅ A taped sheathing WRB layer can be part of a great exterior system
❌ It is not automatically a complete “rainscreen” strategy on its own
❌ It should not be treated as a finished exterior protection layer during extended exposure
❌ It does not eliminate the need for careful flashing, drainage, and detailing

In wet climates like Seattle, performance depends on system design + installation quality, not just the product name on the panels.

Why This Topic Matters More in Seattle

Seattle’s climate adds stress to exterior assemblies because:

Rain events are frequent
Drying time is limited
Shaded elevations stay damp longer
Wind-driven rain increases intrusion risk

That means a wall assembly can look “tight” at framing and still develop moisture problems later—especially after insulation, furring, and cladding are installed over it.

In many cases, problems don’t show up immediately. They show up years later as:

staining
moldy smells
peeling paint
damaged sheathing
rot at windows and transitions

Key Risk #1: Small Panel Gaps Can Become Persistent Water Entry Points

Even when framed well, homes still experience:

seasonal movement
minor framing shifts
variation at panel edges
jobsite exposure and weather impacts

If panel seams are not aligned cleanly—or if edges create inconsistent gaps—those openings can become weak points for water entry behind tape lines.

Over time, this can contribute to:

wet sheathing edges
water tracking behind taped seams
moisture that has limited ability to dry

In wet climates, durability depends on long-term continuity, not just a clean installation on day one.

Key Risk #2: Tape Quality and Application Conditions Matter More Than Many People Expect

Proper waterproofing installation behind siding helps manage moisture and extend the lifespan of exterior materials in rainy coastal environments. — Installation of waterproofing components behind new siding. In Seattle’s wet climate, proper flashing and weather-resistive barriers are essential to protect wall assemblies from moisture intrusion.

With taped sheathing WRB systems, seam tape is not optional—it is structural to the performance of the assembly.

Seams rely on tape to maintain:

water control continuity
air barrier continuity

Tape performance can be compromised when applied over:

dusty panel surfaces
wet substrates
cold conditions
misaligned seams
edges that aren’t properly rolled

The common misconception is that tape “either sticks or doesn’t.” In reality, the risk is often a slower, harder-to-detect issue that can appear later through:

localized leaks
recurring moisture at seams
staining at interior finishes
dampness around openings and transitions

In the Pacific Northwest, tape installation is one of the highest leverage details on the whole project.

Key Risk #3: Fastener Penetrations Add Up Over the Whole House

During framing, a home may accumulate thousands of penetrations through the exterior sheathing layer, including:

nails
staples
temporary attachments
fasteners at edges and blocking

Even when a WRB surface is designed to shed water, repeated penetrations create points where moisture can interact with the assembly over time.

This becomes more important in wet climates because:

water exposure is frequent
drying time is limited
small imperfections can compound

This isn’t meant as a criticism of panel systems—it’s simply the reality of how large wall assemblies behave in real-world conditions.

Key Risk #4: “Temporary Exposure” During Construction Can Become Real Weathering

Many high-performance sheathing + tape systems have exposure limits, but jobsite conditions can extend schedules due to:

weather delays
permitting changes
material lead times
trade coordination gaps

The longer the wall assembly is exposed, the higher the risk of:

seam movement
tape adhesion reduction
moisture cycling at panel edges
corner and opening damage

Even well-designed assemblies can underperform when treated as the final line of defense for too long without additional protection and sequencing.

Key Risk #5: Exterior Insulation Changes the Drying Behavior of the Wall

This is one of the most important issues in the Pacific Northwest.

Continuous exterior insulation can be an excellent upgrade for:

energy performance
comfort
condensation control
thermal bridging reduction

However, once insulation is installed over the sheathing/WRB layer, the wall becomes more sensitive to detailing because:

the WRB layer is now more buried
outward drying behavior changes
water that gets in may stay longer

If the taped sheathing WRB layer has even small air or water leaks at seams or penetrations, moisture can become trapped behind insulation and cladding assemblies—creating conditions where rot develops without obvious exterior warning signs.

In other words:

Once exterior insulation is installed, the tolerance for WRB imperfections decreases significantly.

Key Risk #6: Fastening Through Insulation Creates Additional Penetrations and Complexity

When continuous exterior insulation is installed, cladding often requires:

furring strips
long fasteners
standoffs or attachment systems

That adds complexity because:

new penetrations pass through layers
compression can vary across the wall
transitions become harder to detail cleanly
correcting issues later becomes far more difficult

This is where “good enough” installation standards can create long-term risk—particularly in rainy coastal environments.

A Better Approach: Use a WRB Strategy Designed for Exterior Insulation + Rainscreen Assemblies

For wall assemblies that include exterior insulation or complex cladding attachments, many high-performance builders prefer WRB solutions designed specifically to support:

long-term water management
strong sealing at transitions
better integration with rainscreens
durability around fastener penetrations

Some manufacturers (including ZIP System®) also offer dedicated WRB solutions beyond panel seams and tape. These can provide a more resilient approach for certain assemblies—but they still require attentive installation to perform as intended.

The major takeaway is:

✅ Better WRB strategies exist for these assemblies
✅ But they require correct sequencing and skilled detailing
✅ Long-term performance depends on execution, not branding

Why Installation Quality Matters More Than Product Choice

High-performance exterior systems succeed or fail at details like:

seam prep and rolling
clean, dry substrate conditions
correct lapping/shingling strategy
transitions at corners and openings
window and door integration
penetrations and termination detailing

The weakest points are almost never the big flat wall.
They’re the transitions—where water concentrates and workmanship matters most.

In Seattle’s climate, that difference shows up later as either:

durable performance for decades
or
avoidable moisture damage hidden behind the cladding

Final Thoughts

Taped sheathing WRB systems can be an excellent part of a Pacific Northwest exterior envelope when installed correctly. The risk comes from relying on any sheathing-based WRB as if it replaces a full rainscreen and moisture management strategy—especially when continuous exterior insulation will be installed over the assembly.

In Seattle-area builds, long-term durability depends on:

continuity of the air and water barrier
careful seam and penetration detailing
thoughtful drainage and drying strategy
precise integration at windows and transitions

When homeowners and builders treat the exterior envelope as a complete system, performance improves dramatically—and costly hidden moisture failures become far less likely.

FAQ: Taped Sheathing WRB Systems, Rainscreens, and Exterior Insulation

Is taped structural sheathing considered a WRB?

Yes. Many taped sheathing systems are designed to serve as a water-resistive barrier (WRB) when seams and penetrations are properly detailed. Performance depends heavily on correct installation and continuity.

Is a taped sheathing WRB the same thing as a rainscreen?

No. A WRB is a water-control layer, while a rainscreen is a drainage and drying space behind the cladding. In Seattle’s wet climate, rainscreens help reduce trapped moisture and extend siding lifespan.

Do fastener penetrations matter in WRB performance?

They can. Large wall assemblies include thousands of fasteners, and while WRB systems are designed to handle this, overall performance still depends on careful seam detailing, transition management, and long-term drying potential.

Why does exterior insulation make WRB details more important?

Continuous exterior insulation changes how a wall dries and can reduce outward drying potential. That means small WRB gaps or seam issues can become more consequential because moisture may stay trapped longer behind insulation and cladding.

What should homeowners ask a contractor about WRB and insulation assemblies?

Homeowners should ask how the wall will manage water behind the cladding, how seams and transitions will be detailed, whether a drainage gap or rainscreen will be used, and how window and penetration flashing will integrate with the WRB.
